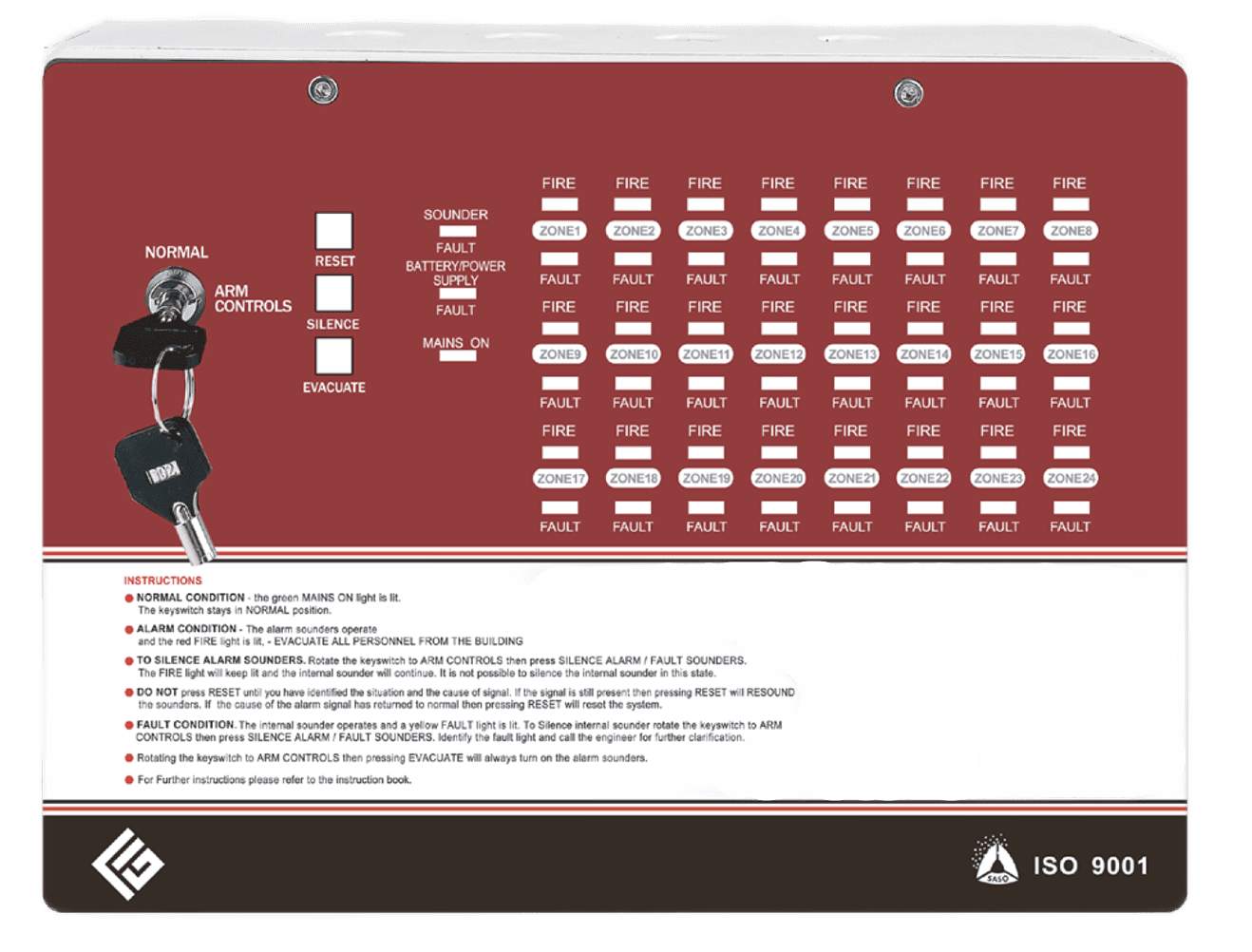

Conventional Fire Alarm Control Panels, FG-Z01, FG-Z02, FG-Z04 and FG-Z08

The FG conventional fire alarm control panel range is designed to monitor and manage non-addressable fire alarm systems in factories, warehouses, high-rise buildings, data centres and commercial facilities.

The panel receives signals from fire detectors and manual call points, displays system status, activates fire alarms and controls connected external equipment.

The range includes four models with different zone capacities:

• FG-Z01 — One-zone conventional fire alarm panel.
• FG-Z02 — Two-zone conventional fire alarm panel.
• FG-Z04 — Four-zone conventional fire alarm panel.
• FG-Z08 — Eight-zone conventional fire alarm panel.

The panel includes a digital display, LED indicators, front control buttons, a 24V relay output and a remote fire alarm output.

Key Features:

• Conventional fire alarm control panels.
• Available with 1, 2, 4 or 8 detection zones.
• Receives signals from detectors and manual call points.
• Displays fire, fault and power conditions.
• Digital display for system information.
• LED indicators for zone and system status.
• Front control buttons for panel operation.
• 24V relay output for external equipment.
• Remote fire alarm output.
• Operates from 220 to 230V AC mains supply.
• Supports a 24V DC backup battery.
• Suitable for factories, warehouses, high-rise buildings and data centres.
• Compact wall-mounted metal enclosure.

Technical Specifications:

• Mains supply voltage: AC 220–230V.
• Rated current: 130mA.
• Battery voltage: DC 24V.
• Internal power supply: DC 27V.
• Total output current: Up to 400mA.
• Number of detector circuits: 1 to 8 zones depending on model.
• Auxiliary fire output type: 24V relay.
• Alarm output: Fire alarm output for remote alarm.
• Available dimensions depending on model: 275 × 200 × 75mm or 320 × 238 × 73.5mm.

Available Models:

FG-Z01
FG-Z02
FG-Z04
FG-Z08
